| सामग्री: | इस्पात | तार की ताकत: | 1770MPA |
|---|---|---|---|
| वायर व्यास: | 3/4 मिमी | मेष खोलना: | 103 मिमी x 180 मिमी |
| प्रमुखता देना: | TECCO mesh material,TECCO wire mesh structure,metal wire mesh with warranty |
||

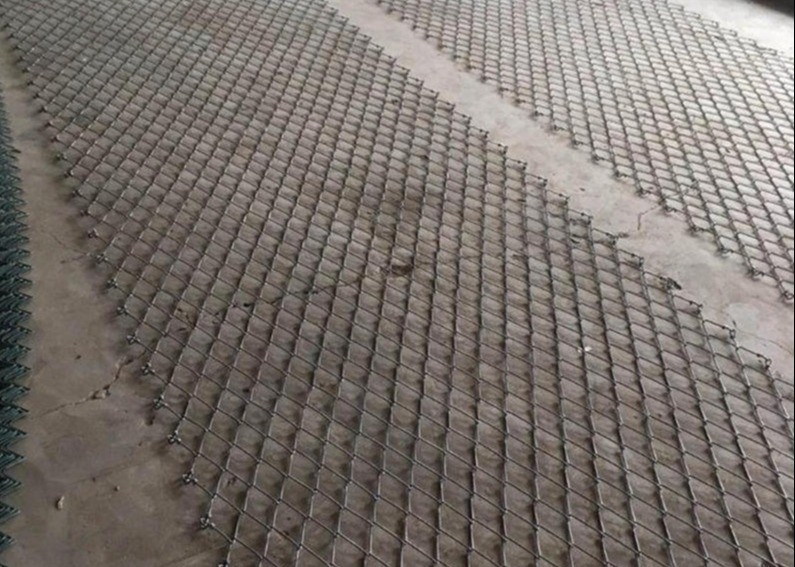

Material and Structure of TECCO Mesh
TECCO mesh is a high-strength protection net developed based on Swiss Geobrugg technology, mainly made of high-tensile steel wire rope. The surface of the steel wire is coated with hot-dip galvanization + Zn-Al (Galfan), with a single wire tensile strength reaching 1770 N/mm², providing greater durability compared with ordinary steel wire mesh.
The mesh adopts a diamond-shaped woven structure, with common specifications of 65mm × 65mm or 83mm × 83mm. This weaving design effectively disperses rockfall impact forces, making the entire system more stable.
Features:
High tensile strength, able to withstand impacts from large falling rocks.
Excellent corrosion resistance, service life of 30–50 years.
Flexible design, adaptable to terrain variations such as steep slopes and cliffs.
Differences Between TECCO Mesh and Ordinary Protection Nets
Many clients compare TECCO mesh with traditional steel wire or iron mesh. The main differences are:
Strength
Ordinary wire mesh has low strength and can break under large rock impacts.
TECCO mesh uses high-tensile steel wire and can withstand several tons of impact.
Service Life
Ordinary mesh may corrode outdoors within 3–5 years.
TECCO mesh lasts over 30 years in harsh environments, almost maintenance-free.
Overall Cost
Although the unit price of TECCO mesh is higher, due to low maintenance and long service life, the long-term cost is actually lower.
