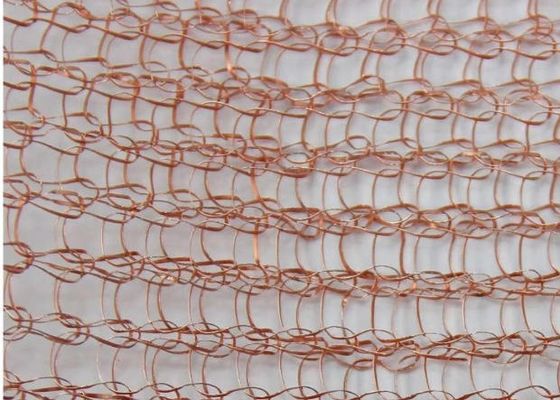

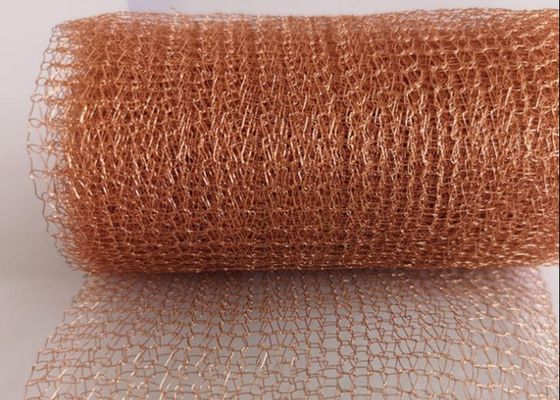

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

प्रमाणन
चीन Hebei Qijie Wire Mesh MFG Co., Ltd प्रमाणपत्र
चीन Hebei Qijie Wire Mesh MFG Co., Ltd प्रमाणपत्र
ग्राहक समीक्षा
हाँ, हम मजबूत जाल प्राप्त किया है और हम गुणवत्ता के साथ बहुत खुश हैं। बहुत धन्यवाद! क्रिस

—— क्रिस जॉनसन

मैं क्यूजी से पाउडर लेपित टी 316 फ्लाइट स्क्रीन मेष को ऑर्डर कर रहा हूं; दूसरों के विपरीत, उन्होंने कभी भी आदेशों को कटौती नहीं की और हमेशा गुणवत्ता की सामग्री मुझे प्रदान की।

—— माइकल जूनियर वेनिडा

मेरे पास पिछले सप्लायर के साथ बहुत खराब क्रय अनुभव था, क्योंकि वे हमेशा शिपमेंट का समय स्थगित करते हैं। मेरी उत्तेजना के लिए, Qijie हमेशा समयनिष्ठ है

—— सुसन मिलर

आपका उत्पाद

—— जटुफोर्न ताए-न्गूग

मैं अब ऑनलाइन चैट कर रहा हूँ

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

बड़ी छवि :  Premium Copper Wire Mesh Double Round Knitted Wire Mesh

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Qijie
प्रमाणन: copper wire mesh
मॉडल संख्या: कॉपर वायर मेष
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 100pcs
मूल्य: Discuss
पैकेजिंग विवरण: कागज के डिब्बों
प्रसव के समय: 15-18 दिन
भुगतान शर्तें: एल/सी, टी/टी
आपूर्ति की क्षमता: 1500 पीसीएस
विस्तृत उत्पाद विवरण
सामग्री: तांबे का तार वायर व्यास: 0.16 मिमी
चौड़ाई: 60 मिमी
प्रमुखता देना:

copper wire mesh double round

,

knitted wire mesh premium copper

,

metal wire mesh with warranty

Premium Copper Wire Mesh Double Round Knitted Wire Mesh



Stainless steel knitted wire mesh for demister pad Introduction:
gas-liguid Separator, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L,;other galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.



Premium Copper Wire Mesh Double Round Knitted Wire Mesh 0





Stainless steel knitted wire mesh for demister pad Specifications
AVAILABLE MATERIALS / ALLOY
STAINLESS STEEL: 304, 304L, 316L 430, INCONEL, MONEL,COPPER, BRASS,ALUMINUM,MILD STEEL (PLAIN & GALVANIZED)
WIRE DIAMETER
0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
ROLL WIDTHS
40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
HOLE SIZES
4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Recommendations:
Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

Premium Copper Wire Mesh Double Round Knitted Wire Mesh 1



Stainless steel knitted wire mesh Application:

It mainly used for processing demister, for separating gases inside the droplet, also be extrusion molding, for manufacturing a filtration device, in the automotive industry, the electronics industry has also been widely used.
