उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | जस्ती इस्पात तार | आवेदन: | सुरक्षा बाड़ |
|---|---|---|---|
| प्रकार: | विस्तारित जाल | रंग: | चाँदी |
| प्रयोग: | निर्माण | विशेषता: | करोश़न रेज़िस्टेंस, टिकाऊ, आसानी से अस्सेम्ब्ल |
| सतह का उपचार: | गर्म डूबा हुआ जस्ती | आकार: | आपकी आवश्यकता के रूप में |
| ईमेल: | devin@industrialmetalmesh.com | Whatsapp: | +8615369013183 |
| प्रमुखता देना: | stainless steel razor barbed wire,anti climb diamond welded wire mesh,concertina razor wire with warranty |
||

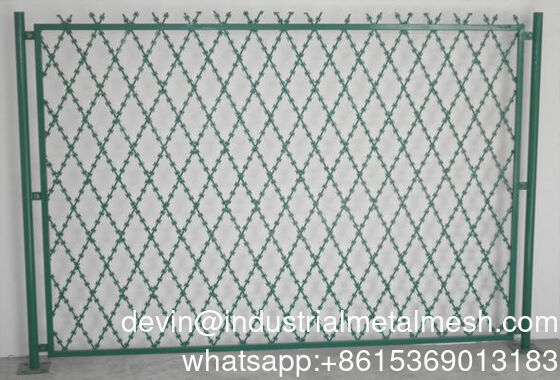

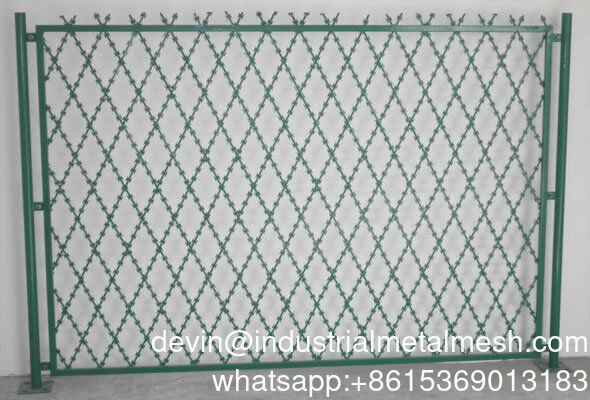

Factory Anti Climb Stainless Steel Diamond Welded Razor Barbed Wire Mesh
Rhombus Welded Razor Mesh Fence has been designed as a high security fencing mesh used to
protect commercial, industrial and government institutions. The product is virtually
impossible to climb or cut with standard tools. The Diamond Pattern Ripper Blade combined
with vertical opposing barbs act as an entrapment, yet it still has a neat appearance.
Welded Razor Wire in the form of mesh
* Extremely difficult to cut (high tensile core wire)
* Hard to climb
* Height of 1.2, 1.8, 2.1 and 2.4 meters
* Does away with the need for a fence topping
* Extremely difficult to cut (high tensile core wire)
* Hard to climb
* Height of 1.2, 1.8, 2.1 and 2.4 meters
* Does away with the need for a fence topping
Application:
Rhombus Welded Razor Mesh Fence is the ideal solution for any facility perimeter where an
aggressive visual deterrent and physical barrier is required.
Rhombus Welded Razor Mesh Fence Specifications:
Standard Heights: 6', 7 ½' and 10' (1.8m, 2.3 m and 3m)
Aperture Size: 3"*6" high density (7.62cm*15.24cm, Standard density also available)
Standard Panel Length: 20'6" (6.25m)
Blade length: 0.98" (2.5cm)
Blade thickness: 0.02" (0.5mm)
Blade width: 0.74" (19mm)
Blade spacing: 1.97" (5cm)
| Welded Razor mesh fence | ||||||||
| Name | Core Wire | Sheet | Razor Style | Mesh Aperture | Finished | Size | Package | |
| Welded Razor Mesh | 2.5±0.05mm | 0.5±0.03 mm | BTO-22 BTO-28 BTO-30 |
75X150mm 150X300mm as standard |
HDG or PC coated |
1.2x6.0m 1.8x6.0m 2.1x6.0m 2.4x6.0m |
In roll or pallet | |
| Name | Welded Razor Mesh Specification | |||
| Welded Razor Mesh | Core Wire | Razor Strip (sheet) | Square Razor Mesh Size | Diamond Razor Mesh Size |
| 2.50±0.05 mm High Tensile Galvanised Wire Or stainless steel wire AISI304, AISI430, AISI316, AISI304L, AISI316L |
0.50±0.05 mm Galvanised sheet strip razor Or stainless steel sheet trip AISI304, AISI430, AISI316, AISI304L, AISI316L |
50 × 150 mm 75 × 150 mm 100x150 mm |
75 × 150 mm 150 × 300 mm |
|
| Other Mesh Sizes According to Customers' requirement | ||||
Galvanized anti-corrosion
Quick and easy for installation
Prevent sunlight, resistance against weathering drying
The appearance of the dreaded and excellent protective performance.
Sharp razor and it is almost impossible to climb.
Solid welded, high-strength steel core very difficult to cut off.
Powerful security fence barriers neat appearance.
No secondary use, so he will not be stolen.
Various type can be chosen, square mesh, diamond mesh, etc
Various materials can be chosen, galvanized, stainless steel, with various colors.
Application:
Packing:
1. Packing will be different based on the client's request.

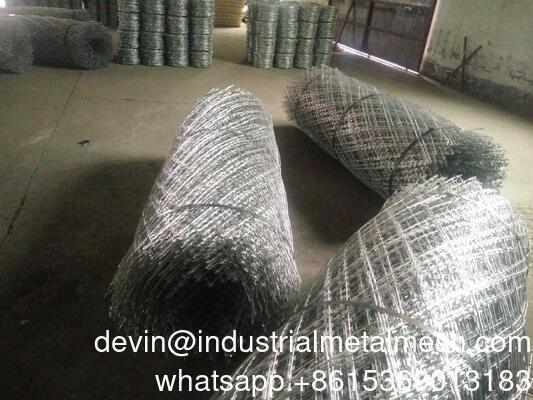

2. Normally, welded razor mesh is packed with waterproof paper inside and woven bag outside.
3. About 15 rolls per small bundle, and put on the wood pallet or in the carton box
