उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| रासायनिक संरचना: | फे, सी, सी, एमएन, एस, पी | मिश्र धातु या नहीं: | 5-8 दिन |
|---|---|---|---|
| परियोजना समाधान क्षमता: | ग्राफिक डिज़ाइन, 3डी मॉडल डिज़ाइन, परियोजनाओं के लिए संपूर्ण समाधान | आवेदन: | विला |
| सतह का उपचार: | हॉट-डीआईपी गैल्वनाइजिंग, पेंटिंग या अनुपचारित | जाली की लंबाई: | 1000 मिमी |
| जाली की चौड़ाई: | 800 मिमी | असर बार चौड़ाई x मोटाई: | 25x3 मिमी |
| असर बार आकार: | सादा, दाँतेदार I बार टाइप स्टाइल स्टील ग्रेटिंग | क्रॉस बार आकार: | गोल, मुड़, बार आकार |
| जाल का आकार: | 30x100 मिमी | ईमेल: | devin@industrialmetalmesh.com |
| Whatsapp: | +8615369013183 | ||
| प्रमुखता देना: | painted welded steel grating,serrated steel grating,galvanized steel grating with warranty |
||

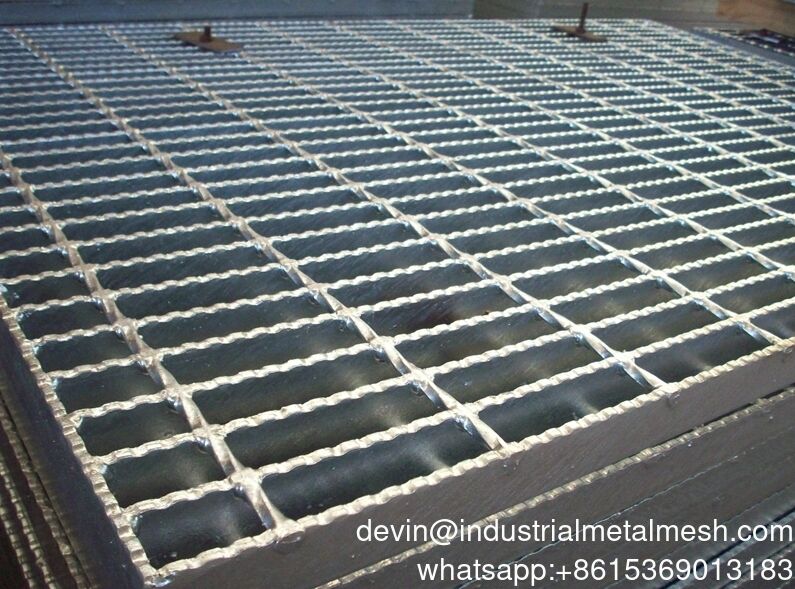

Painted Welded Steel Grating with Serrated Surface
Grating, also called steel grating or steel bar grating, refers to the steel bar grating made of mild carbon steel through surface treatment.
Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel.
| Specifications of steel gratings | |
| Bearing bar | 20x5,25x3,25x4, 25x5,30x3,30x4,30x5,32x3,32x5,40x5,50...75x8mm, etc. |
| Bearing bar depth | 25,30,30.16,32.5,34.3,40,50,60,62,65mm, etc. |
| Cross bar | 5x5, 6x6,8x8mm (twisted bar or round bar) |
| Cross bar spacing | 40, 50,60,65,76,100,101.6,120,130mm or as customers' requirement. |
| Flat bar type | Plain, Serrated (tooth-like), l bar (l section) |
| Surface treatment | Untreated |
| Hot dip galvanized | |
| Cold dip galvanized | |
| PVC coated | |
| Powder coated | |
| Note: 1.Special sizes avaliable at request. 2.Packing:in plastic in rolls. Custom packing available at request. |
|
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |

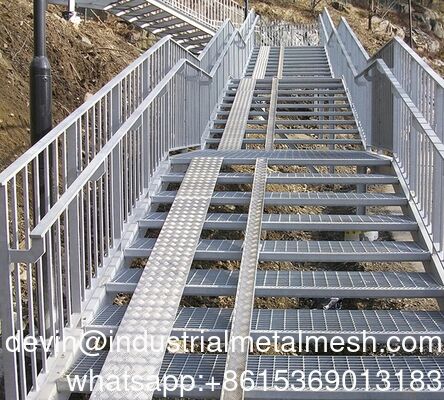

| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
