उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | इस्पात | सतह का उपचार: | गर्म डूबा हुआ गैल्वेनाइज्ड |
|---|---|---|---|
| मानक: | GB/T3091 - 2001, BS1387 - 1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53 | इस्पात श्रेणी: | GB/T3091 - 2001:Q195, Q235 BS1387 - 1985, DIN EN10025 EN10219:S235JR JIS G3444:2004:STK400 ASTM A53: |
| प्रमुखता देना: | Hot dipped GI steel pipe for construction,Pre-galvanized round steel pipe ASTM,Round steel pipe for building construction |
||

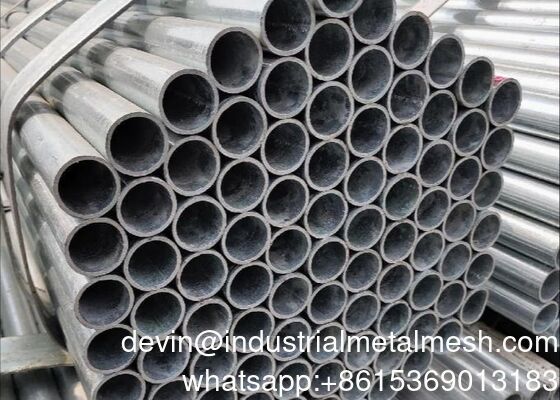

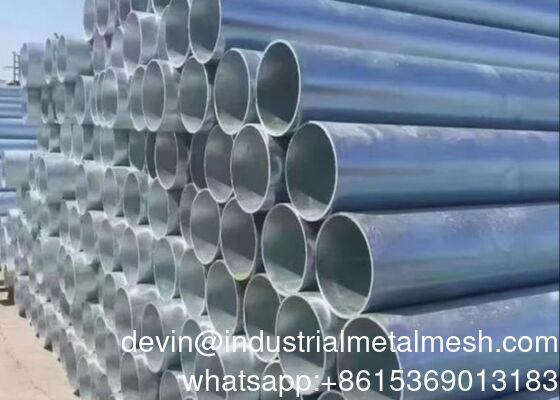

Hot Dipped Gi / Pre-Galvanized Round Steel Pipe for Building Construction, ASTM Standard, in Stock
| Shape | Square:20*20-200*200mm |
| Rectangular :30*20-250*150mm | |
| Thickness | 0.12-4 mm, or as request |
| Length | 3-12m,or as per your request |
| Technique | Hot Rolled, Cold Rolled,ERW,High-frequency welded,Extruded |
| Surface | Bared, Oil, Galvanized, Paint,etc |
| Standard | GB/T3094-2000,GB/T6728-2002,ASTM A500,JIS G3466,DIN EN10210,or others |
| Material | Q195,Q235,Q275,Q345,S355,St33,St37,St52A500,A513,A106 and so on |
| Certification | ISO9001:2000,CE,SGS |
| Package | Wooden box,steel strip,pallet,or as your request |
| Productivity | 15000tons/month |
| Usage | Machinery manufacture,Roads and Bridges,Construction,Transportation |
| 1. Size: | 1) OD: 16~600mm 2) Wall Thickness: 0.5~25mm 3) SCH20,SCH40,STD,XS,SCH80,SCH160,XXS |
2. Steel material: |
Q195 Q215 Q235 |
| 3. Standard: | ASTM A53, BS1387-1985 |
| 4. Zinc Coating: | 30~275gsm |
| 5. Usage: | 1)low pressure liquid, water, gas, oil, line pipe 2)construction 3)fence, door pipe |
| 6. Ends: | 1) Plain 2) Beveled 3) Thread with Coupling or cap 4) Chamfer 5) Groove 6) Screw |
| 7. End protector: | 1) Plastic pipe cap 2) Iron protector |
| 8. Surface Treatment: | 1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) Oiled 5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating. |
| 9. Technique: | 1) Electronic Resistance Welded (ERW ) 2) Electronic Fusion Welded (EFW) 3) Double Submerged Arc Welded (DSAW) |
| 10. Welded Line Type: | Longitudinal |
| 11. Section Shape: | Round, Square, Rectangular. |
| 12. Inspection: | With Hydraulic Testing, Eddy Current , Infrared Test |
| 13. Delivery: | Container, Bulk Vessel. |
| 14. Minimum Order Quality: | 5MT |
1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H
Square & rectangular steel tube : The size can be based on your requirement to custom.
| Name | Size | Wall Thickness | Length |
| mm | mm | m | |
| Square tube | 10x10-500x500 | 0.6-25.0 | 1-12m |
| Rectangular tube | 20x10-200x400 | 0.7-13.0 | 1-12m |
|
TECHNICAL PARAMETERS
|
|
|
Product Name
|
Galvanized Steel Round Pipe
|
|
Keywords
|
Steel Pipe
|
|
Standard
|
BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
|
|
Material
|
Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
|
|
Thickness
|
Pre Galvanized:0.6-1.5mm.
|
|
Hot Dipped Galvanized: 1.6- 25mm.
|
|
|
Length
|
5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
|
|
Out Diameter
|
Pre Galvanized:1/2''-4''(21.3-114.3mm).
|
|
Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
|
|
|
Zinc Coating
|
Pre Galvanized:5GSM-40GSM
|
|
Hot Dipped Galvanized 35GSM-200GSM
|
|
|
Technique
|
Electronic Resistance Welded (ERW)
|
|
Surface Finish
|
Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
|
|
Application
|
Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
|
|
Packing
|
1.Big OD:In Bulk
|
|
2.Small OD:Packed By Steel Strips
|
|
|
3.Woven Cloth With 7Slats
|
|
|
4.According To The Requirements Of Customers
|
|
|
SIZE INTRODUCTION
|
||
|
Out Diameter
|
Wall Thickness
|
Length
|
|
Inch
|
Mm
|
M
|
|
1/2"
|
0.5-2.75
|
1-12M (Customized)
|
|
3/4"
|
0.5-2.75
|
1-12M (Customized)
|
|
1"
|
0.5-3.75
|
1-12M (Customized)
|
|
1-1/4"
|
0.5-5.0
|
1-12M (Customized)
|
|
1-1/2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2"
|
0.5-5.0+
|
1-12M (Customized)
|
|
2-1/2"
|
0.8-5.0+
|
1-12M (Customized)
|
|
3"
|
0.8-5.0+
|
1-12M (Customized)
|
|
4"
|
0.8-4.0
|
1-12M (Customized)
|
|
5"
|
1.1-4.75
|
1-12M (Customized)
|
|
6"
|
1.1-6.0+
|
1-12M (Customized)
|
|
8"
|
1.2-6.5+
|
1-12M (Customized)
|
|
10"
|
2.75-5.0+
|
1-12M (Customized)
|
