| सामग्री: | कार्बन स्टील तार | जाल खोलना: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 मिमी |
|---|---|---|---|
| तार का व्यास: | 0.4 मिमी - 1.5 मिमी | रोल की चौड़ाई: | 0.4 मी, 0.5 मी, 0.6 मी, 0.8 मी, 1.0 मी, 1.25 मी, 1.5 मी, 2.0 मी |
| रोल की लंबाई: | 15M,30M,50M ect | सतह का उपचार: | गर्म डूबा हुआ गैल्वेनाइज्ड या इलेक्ट्रिक गैल्वेनाइज्ड |
| मॉडल संख्या: | xx-01001 | आवेदन पत्र:: | बाड़ जाल |
| ईमेल: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| प्रमुखता देना: | galvanized welded wire mesh fence,iron wire mesh panels,square hole wire fence |
||

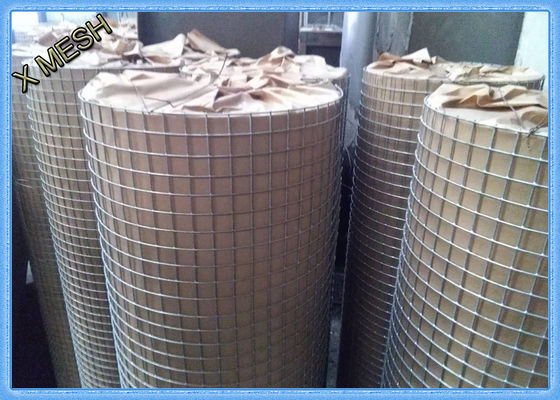

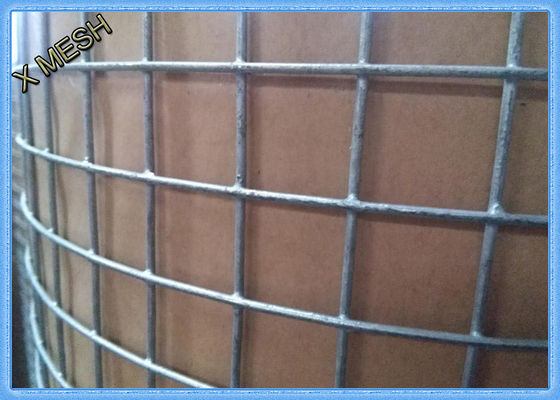

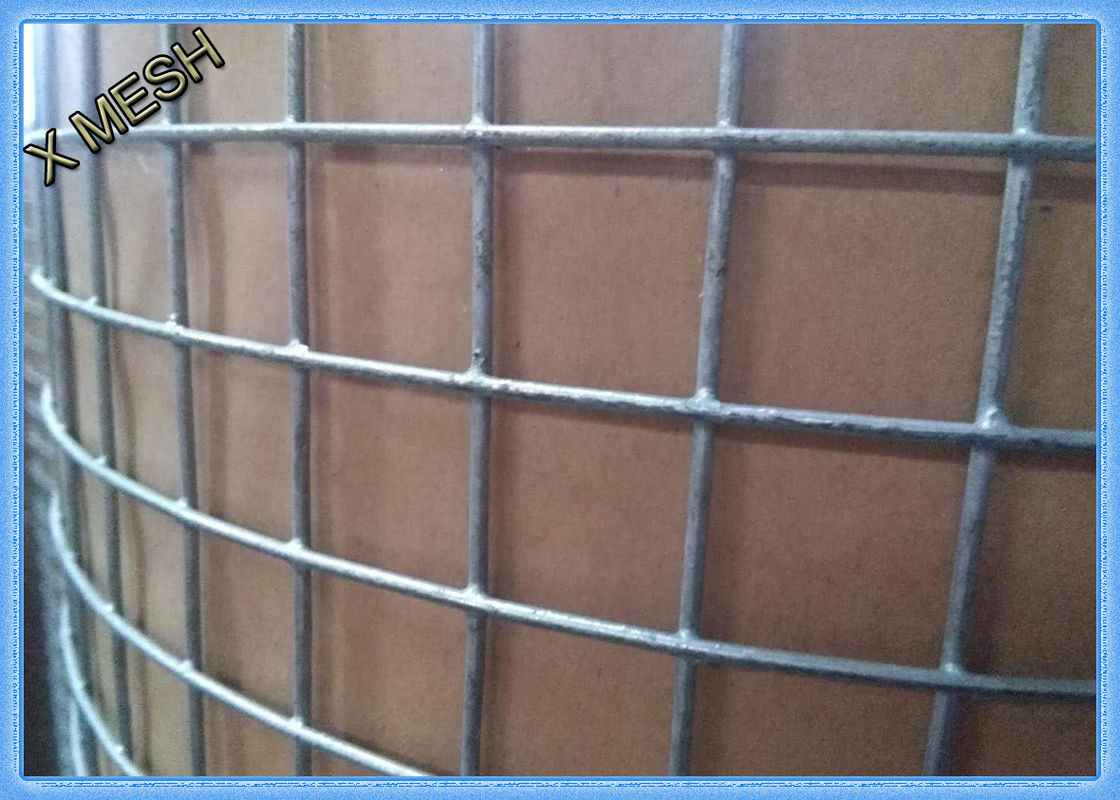

Galvanized Welded Wire Mesh Fence Panels Square Hole Shape Made Of Iron Wire
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
|
Opening (In inch)
|
In metric unit(mm)
|
Wire Diameter(BWG)
|
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21
|
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.
Applications:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
