उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | T316 | तार का व्यास: | 0.8मिमी |
|---|---|---|---|
| जाल: | 11 x 11 | सतही समापन: | चूरन लेपित |
| रंग: | काला, भूरा, प्रकृति | आकार: | 0.75 x 2.0 मीटर, 0.9 x 2.0 मीटर, 0.9 x 2.4 मीटर, 1.2 x 2.0 मीटर, 1.2 x 2.4 मीटर |
| ईमेल: | devin@industrialmetalmesh.com | WHATSAPP: | +8615369013183 |
| प्रमुखता देना: | rust resistant stainless steel fly screen,fireproof insect proof window mesh,durable stainless steel window screen |
||

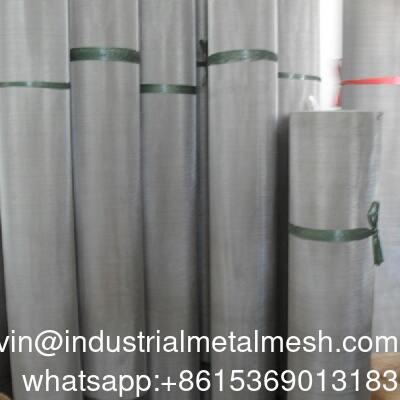

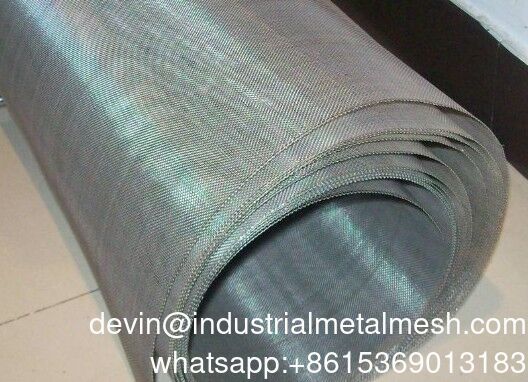

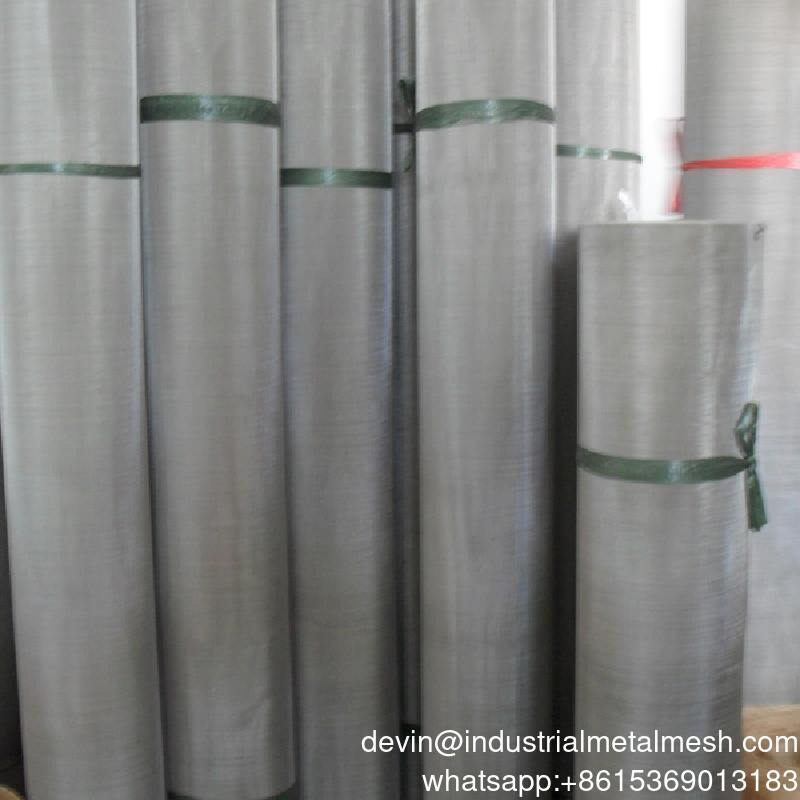

Rust Resistant Durable Insect Proof Fireproof Window Stainless Steel Screen
|
Window Screen Mesh/Mosquito Screen Mesh Main Spec.
|
|||||
|
AL250 Aluminum Flyscreen
|
AE180Epoxy steel screen
|
AL220Aluminum Flyscreen
|
|||
|
Material
|
Aluminum 5154
|
Material
|
Steel
|
Material
|
Aluminum 5154
|
|
Mesh
|
18x16
|
Mesh
|
18x14
|
Mesh
|
18x14
|
|
Wire Dia.
|
0.25mm
|
Wire Dia.
|
0.18mm
|
Wire Dia.
|
0.22mm
|
|
Color
|
Silver,Black,Brown
|
Weight
|
260g/m
|
Weight
|
130g/m2
|
|
Weight
|
175g/m2
|
Color
|
Black
|
Color
|
Silver, Black, Brown
|
|
Openness
|
69%
|
Openness
|
78%
|
Openness
|
74%
|
|
Elongation
|
4%
|
Elongation
|
10%
|
Elongation
|
4%
|
|
Mesh Size
|
1.16x1.33mm
|
Mesh Size
|
1.22x1.62mm
|
Mesh Size
|
1.19x1.59mm
|
|
Tensile Strength
|
300Mpa
|
Tensile Strength
|
500Mpa
|
Tensile Strength
|
300Mpa
|
|
Fire Resistance
|
BAL-29
|
Salt Spray Test
|
250h
|
Fire Resistance
|
BAL-29
|
|
Max.Width
|
183cm
|
Max.Length
|
1000m
|
Max.Width
|
183cm
|
|
Application
|
Window screen
|
Max.Lenght
|
1000m
|
Application
|
Window screen
|
Light duty specification list
| Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter |
Roll size (m) |
||
| Stainless Steel insect screen | 16 × 16 | 0.35mm |
0.6 x 30.5 0.9 x 30.5 1.2 x 30.5 |
Material: ss304, ss316 |
| 18 × 18 | 0.23mm | |||
| 18 × 14 | 0.28mm | |||
| 20 × 20 | 0.18mm | |||
| 24 x 24 | 0.22mm | |||
For high traffic areas, such as doors or windows, you can select our heavy duty stainless steel insect mesh. The mesh can be installed to protect windows or doors; it can also play a part to keep insects out, but also provide extra security without comprising ventilation.
Heavy duty specification list
| Product name | Specification | Introduction | ||
| Mesh/Inch | Wire diameter |
Panel size (mm) |
||
|
Stainless steel fly screen mesh |
10 × 10 | 0.9mm |
1500 x 2500 1300 x 2600 1200 x 2000 1200 x 2400 1000 x 2400 |
Material: T 304, T 316 |
| 11 × 11 | 0.8mm | |||
| 12 × 12 | 0.7mm | |||
