उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | पीवीसी लेपित स्टील वायर | तार का व्यास: | 2.5 मिमी, 3.05 मिमी, 3.76 मिमी, 4.88 मिमी |
|---|---|---|---|
| जाल: | 50x50 मिमी, 60x60 मिमी | ऊंचाई: | 1.5 मीटर, 1.8 मीटर, 2.4 मीटर |
| लंबाई: | 15.2 मीटर / 50 फीट | जिंक द्रव्यमान: | 60 ग्राम, 120 ग्राम |
| ईमेल: | devin@industrialmetalmesh.com | WhatsApp: | +8615369013183 |
| प्रमुखता देना: | stainless steel chain link fence,folded-handle chain link fence,durable warehouse chain link fence |
||

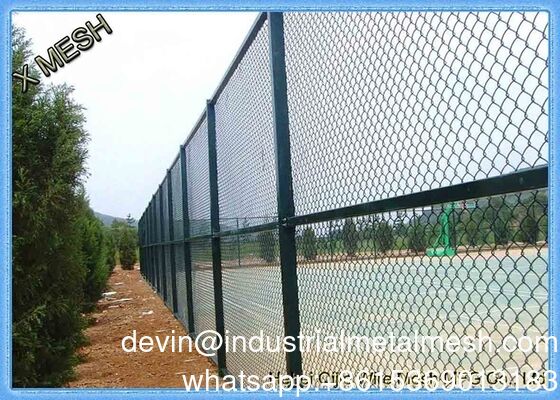

Durable Folded-Handle Stainless Steel Chain Link Fence for Warehouses
Product descriptions
Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.
Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.
drawing of chain link fence
|
Parameter
|
Specification
|
|
Material
|
Galvanized steel wire
|
|
Height
|
0.5m-6m
|
|
Length
|
4m-50m
|
|
Mesh Opening
|
20*20mm, 50*50mm, 60*60mm, 80*80mm etc
|
|
Wire diameter
|
1.0mm-6.0mm
|
|
Technique
|
Woven
|
|
Post & rail diameter
|
32mm, 42mm, 50mm, 60mm, 76mm, 89mm etc
|
|
Post & rail thickness
|
1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm etc
|
|
Post type
|
Round post, angle post, square post, etc
|
|
Edge type
|
Knuckle type, twist type, special type
|
|
Surface treatment
|
Electric galvanized, hot dipped galvanized, PVC coated
|
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);
Loading of PVC coated Chain Link Fence
install of chain link fence
4' High x 250' Galvanized Chain Link Fence Packages Include:
pvc coated chain link fence-001
galvanized chain link fence-001
galvanized chain link fence-002
galvanized chain link fence-003
galvanized chain link fence-004
galvanized chain link fence-005
